KPI-based Conformity Rules

The KPI-based Conformity Rules is a data governance feature that sets up rules to assess the conformance of an Article or a Product to the acceptable standards.

Key Term:
  • Key Performance Indicator (KPI): is a measurement used to determine the quality of product data added into the system in relation to a set standard.
Description:
  • KPIs help to find the accuracy of the products on the basis of an article’s attributes, taxonomy, and tags.
  • KPIs check the following 4 factors: Completeness, Conformity, Uniqueness, and Accuracy.
  • KPIs drill down on the basis of Taxonomy and Tags.
  • The KPI: Conformity checks the accuracy of data in the product and also inspects the data compliance with respect to the standards.
Related topics:
Application:
  • Data Conformity is one of the most important data quality and accuracy checking characteristics. It is a very important factor for KPIs.

  • Example:

    An organization sells furniture products. They have attributes for Length of the wood and tags for Color. Then, the Conformity Rule helps users to check that the length should not be more than 400m (40,000cm).

How-to: KPI-based Conformity Rules

To do this feature, follow these steps:


  • Log in and go to Administration.
../../../../../../_images/pxp_monitordataquality_login.PNG


  • Click on Data Governance.
../../../../../../_images/pxp_monitordataquality_clickondatagovernance.PNG


  • Click on KPIs.
../../../../../../_images/pxp_monitordataquality_clickonkpis.PNG


  • Click on the ‘+’ icon to create a new KPI.
../../../../../../_images/pxp_monitordataquality_clickontheicontocreatenewkpi.PNG

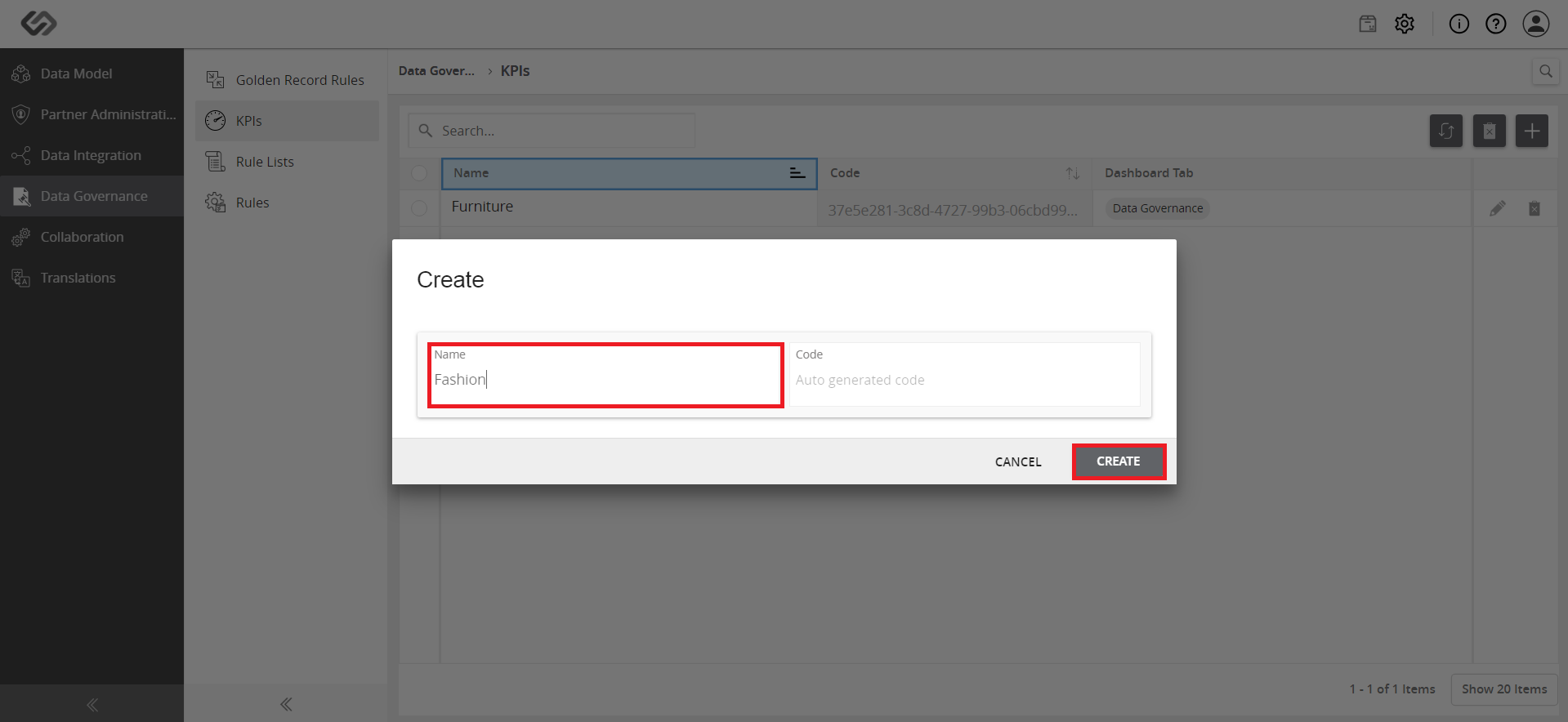

  • Fill out the name and click on the Create button.
../../../../../../_images/pxp_kpibasedconformity_filloutthename.PNG

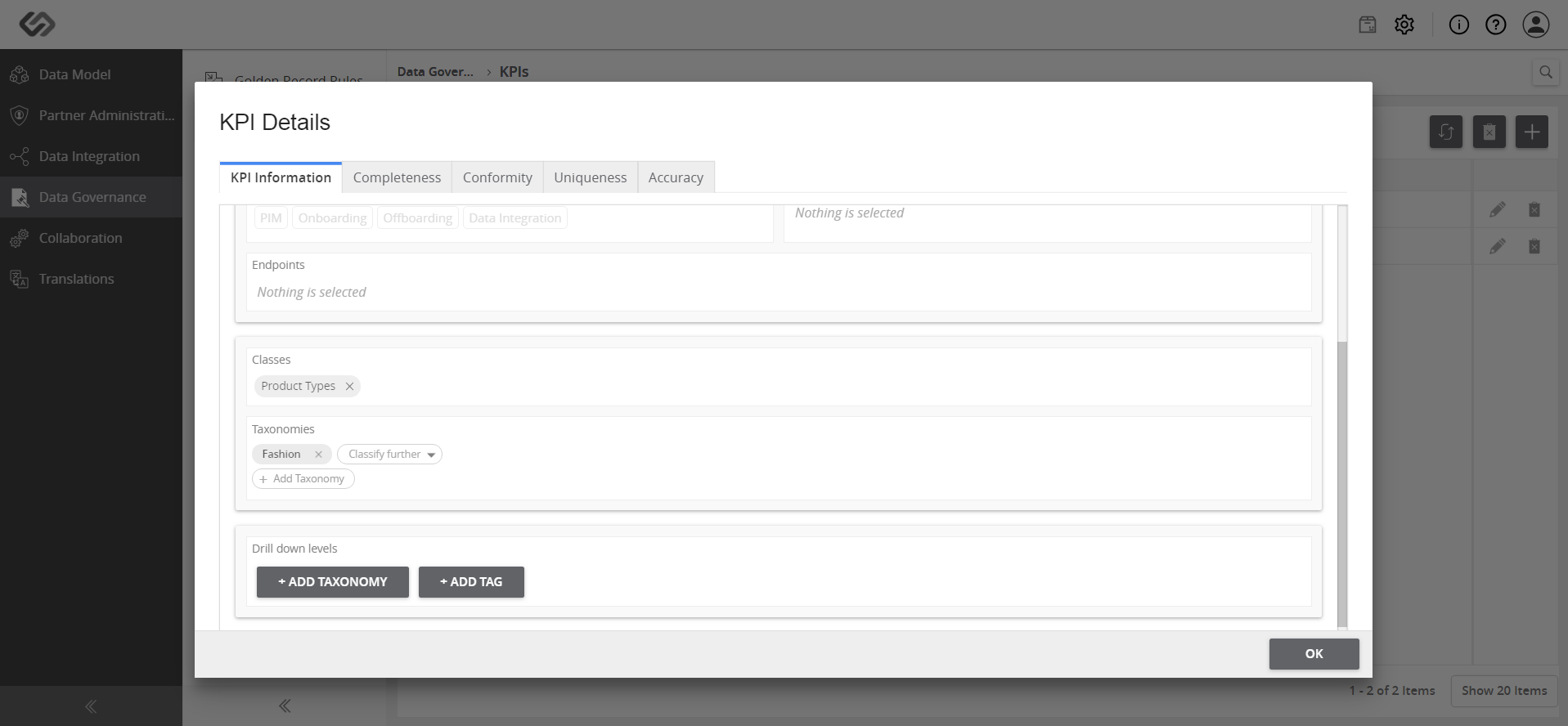

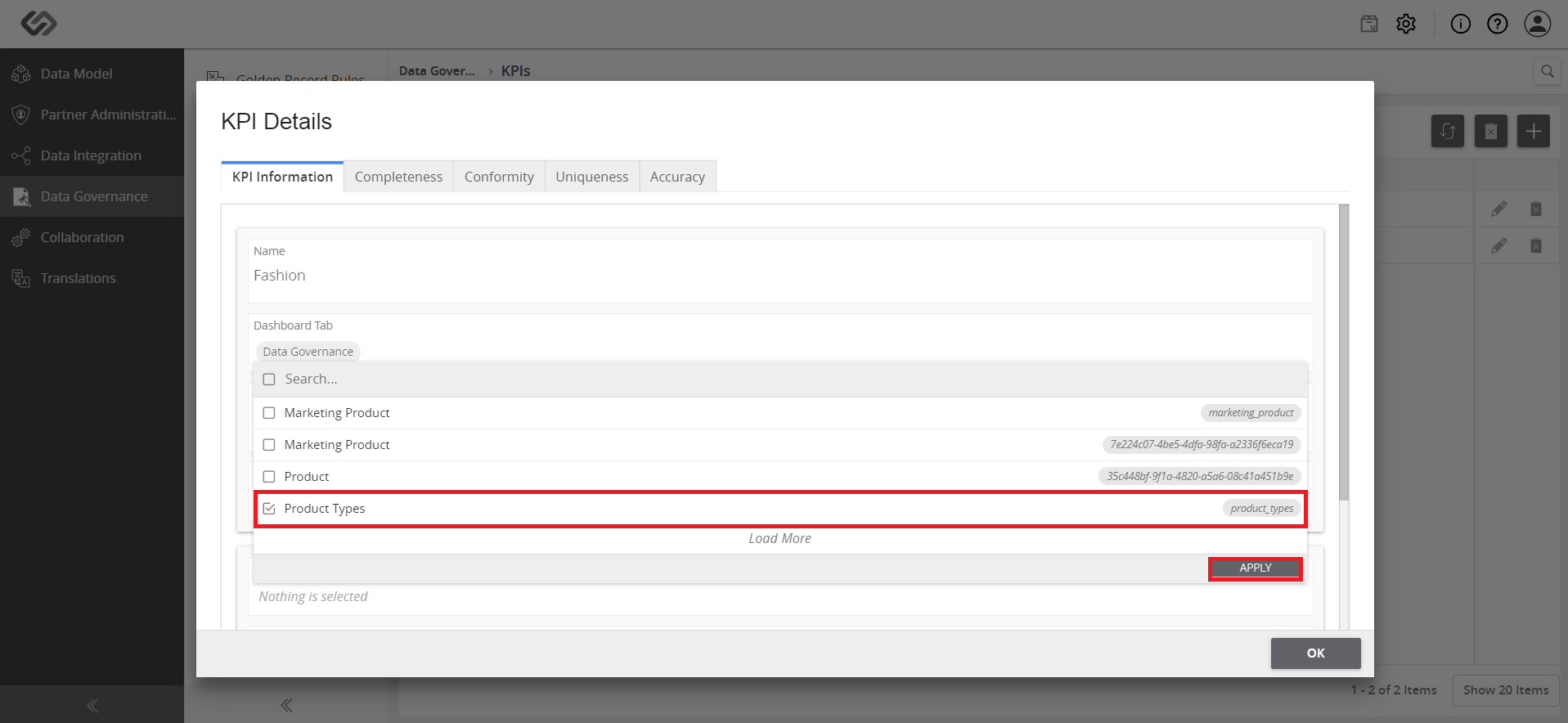

  • On the KPI Details page, select a Class and Taxonomy, which will use the KPI. Click the Apply button.
../../../../../../_images/pxp_kpibasedconformity_selectclassandtaxonomy.PNG

../../../../../../_images/pxp_kpibasedconformity_selectclassandtaxonomy2.PNG

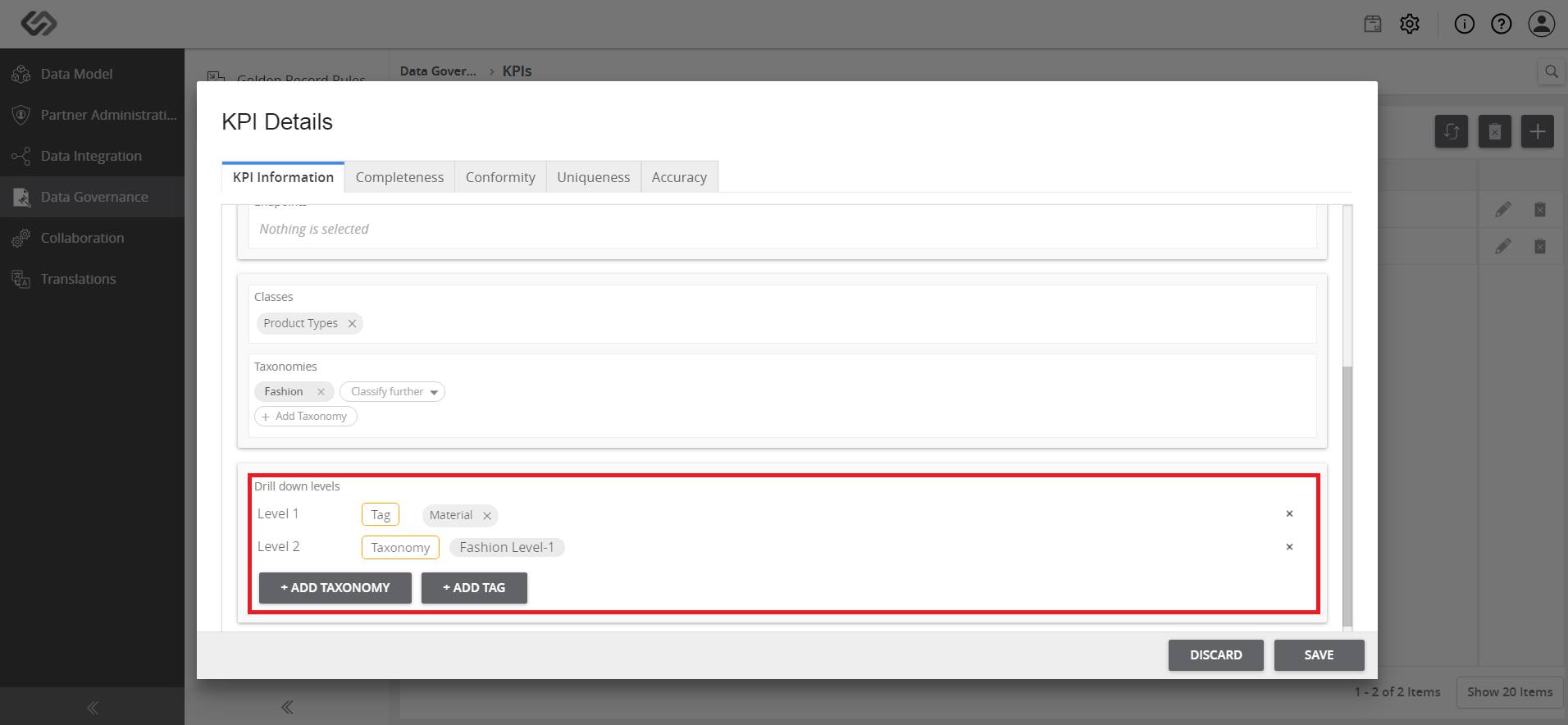

  • For the Drill down levels, add Tags or Taxonomies, where the KPI is to be categorized into.
../../../../../../_images/pxp_kpibasedconformity_forthedrilldownlevels.PNG

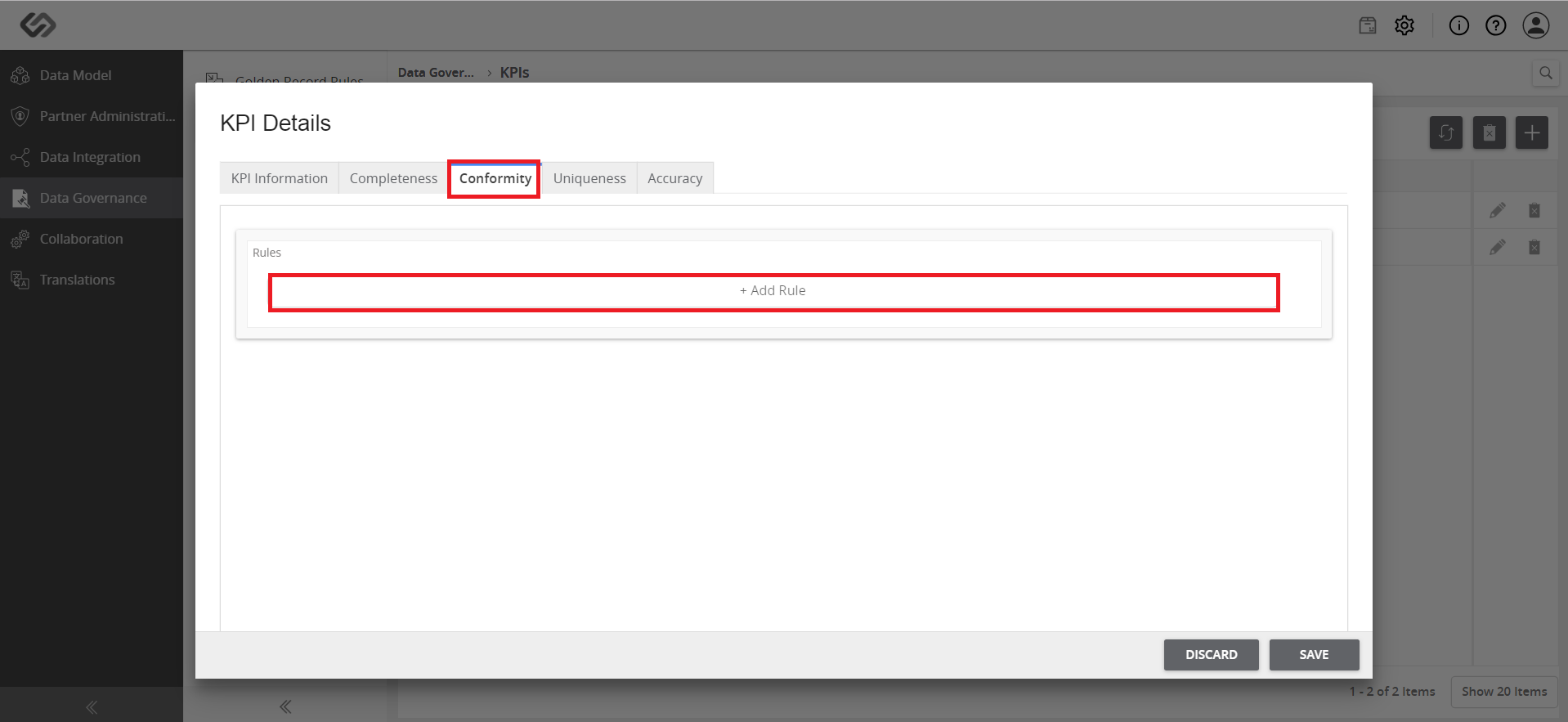

  • Click on the Conformity tab and click on the + Add Rule button to create a new rule.
../../../../../../_images/pxp_kpibasedconformity_clickontheconformity.PNG

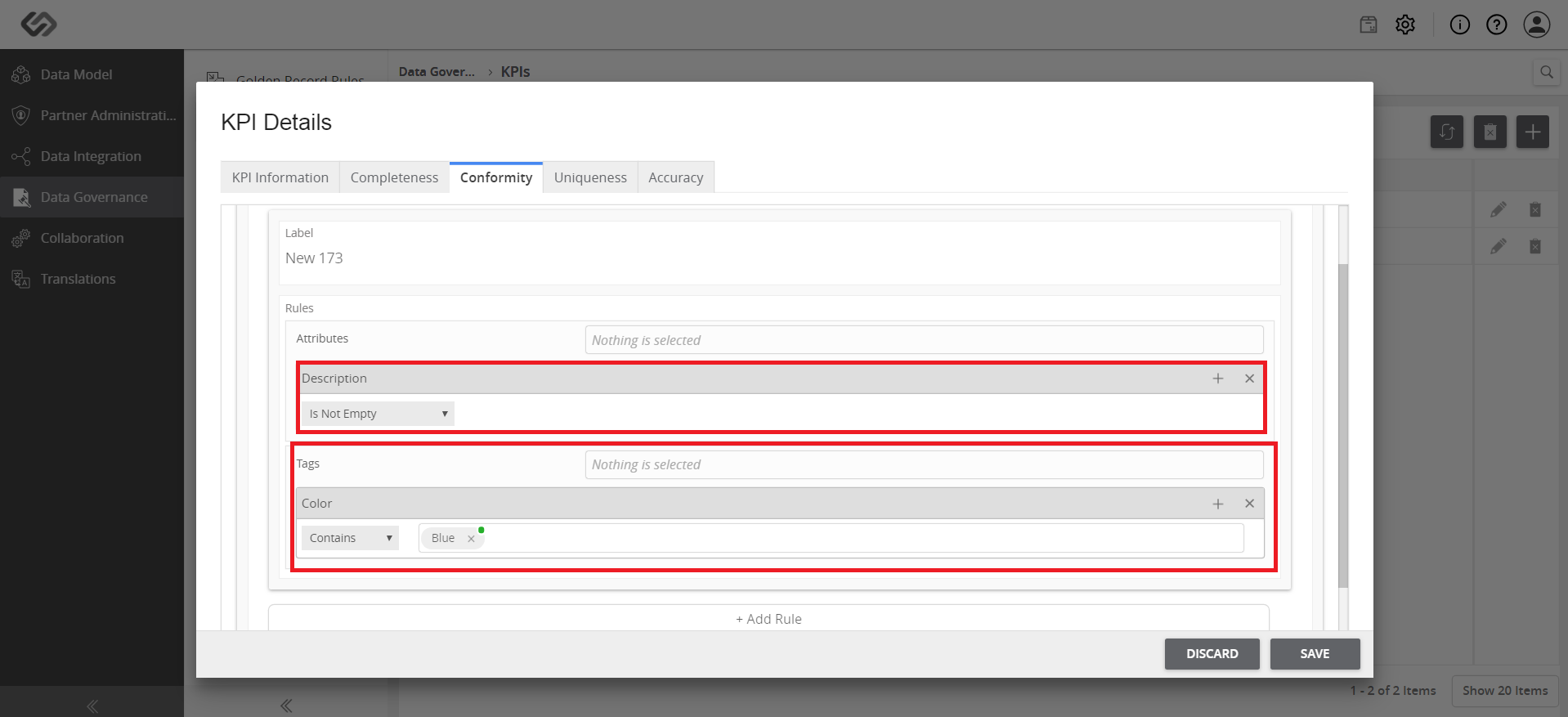

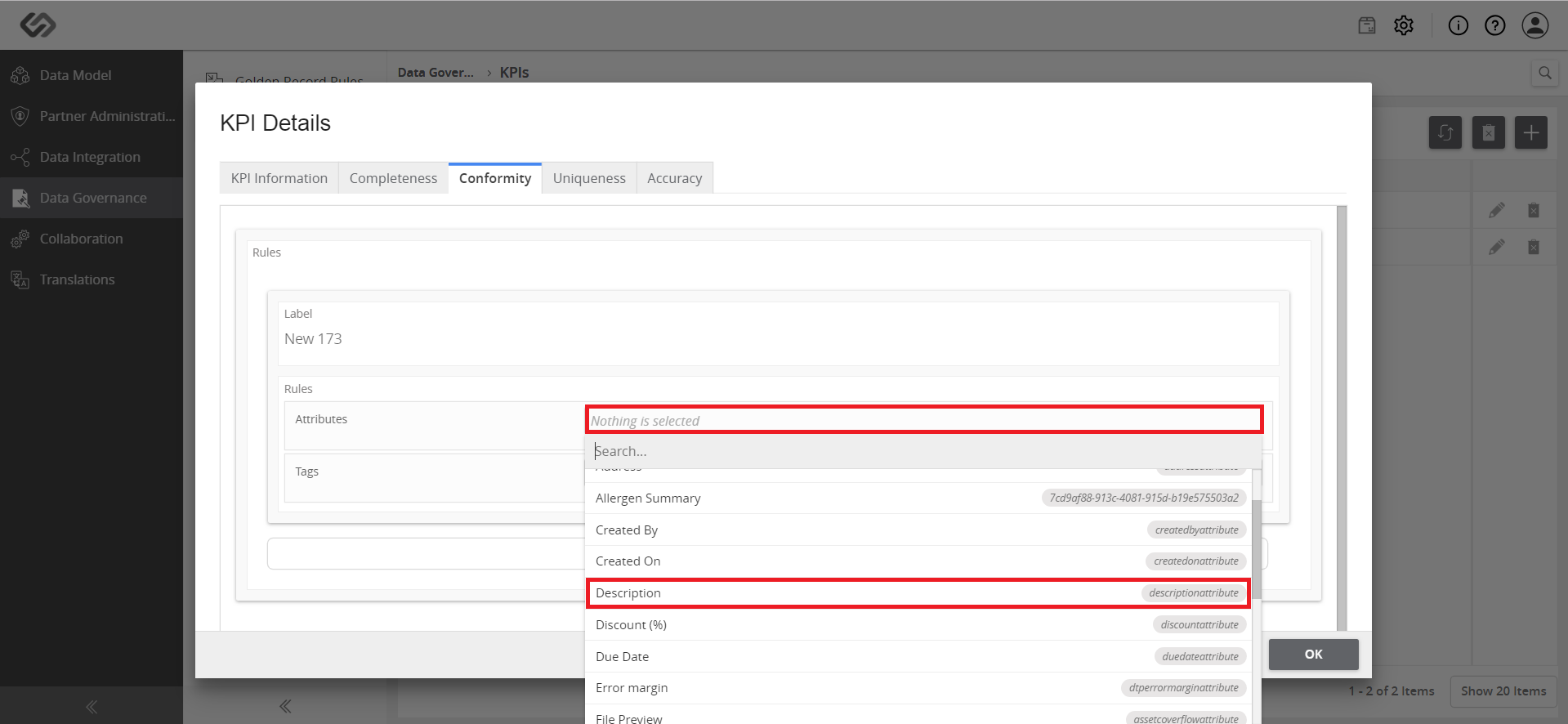

  • Provide the details for the Label, Attributes, and Tags to which the rule will be applied. Select the rules according to the requirements and standards.
../../../../../../_images/pxp_kpibasedconformity_providethedetails.PNG

../../../../../../_images/pxp_kpibasedconformity_providethedetails2.PNG

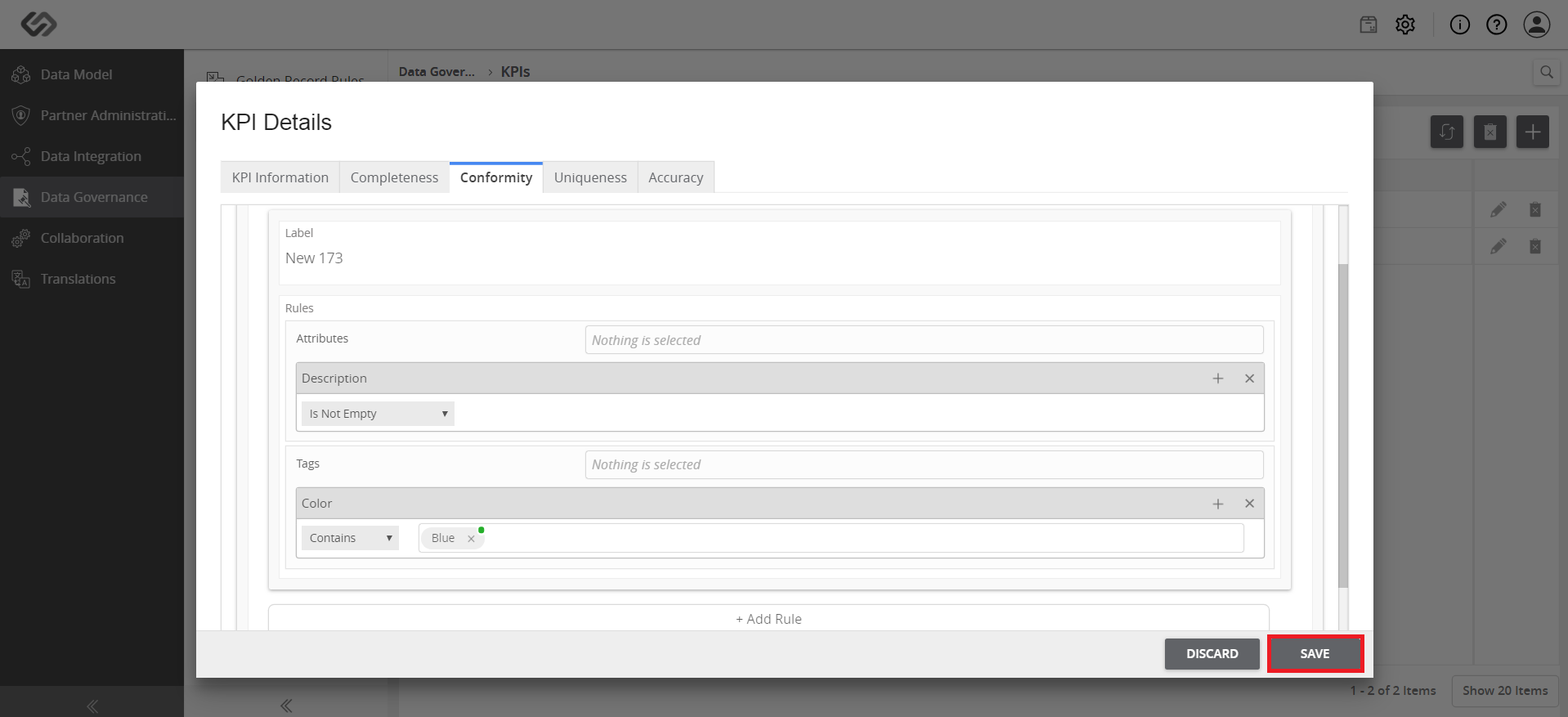

  • Click the Save button.
../../../../../../_images/pxp_kpibasedconformity_clickthesave.PNG

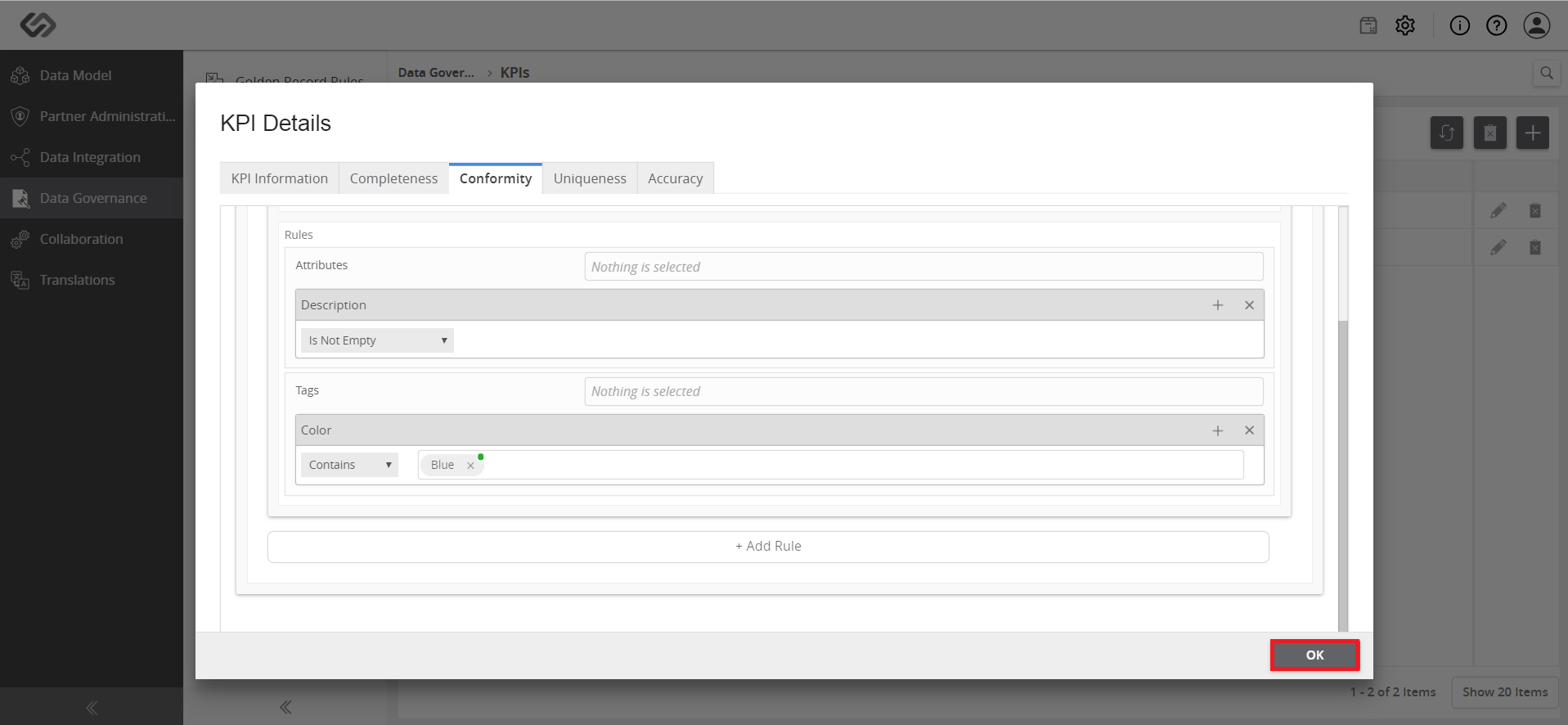

Note: A notification will confirm that the rule and the KPI have been created. Click the OK button to continue.

../../../../../../_images/pxp_kpibasedconformity_noteclickok.PNG
