Extended TextAsset Export

You can use this component when you create a separate sheet of non-nature text asset classes in an offboarding file. This sheet will contain the details of only non-nature text assets classes. Extended TextAsset Export component is used to import the extended text assets to the system.

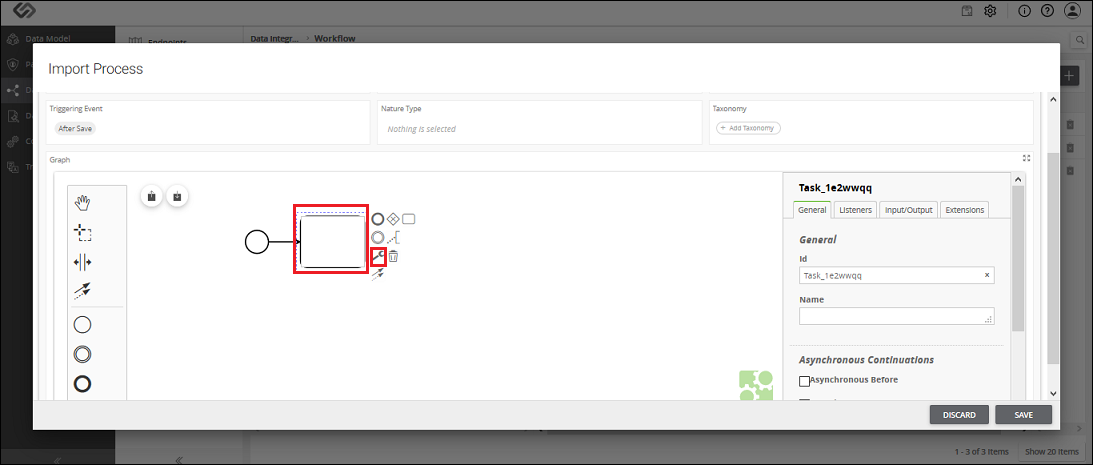

../../../../../../_images/pxp_exportcomponents_extendedtextassetexport.PNG

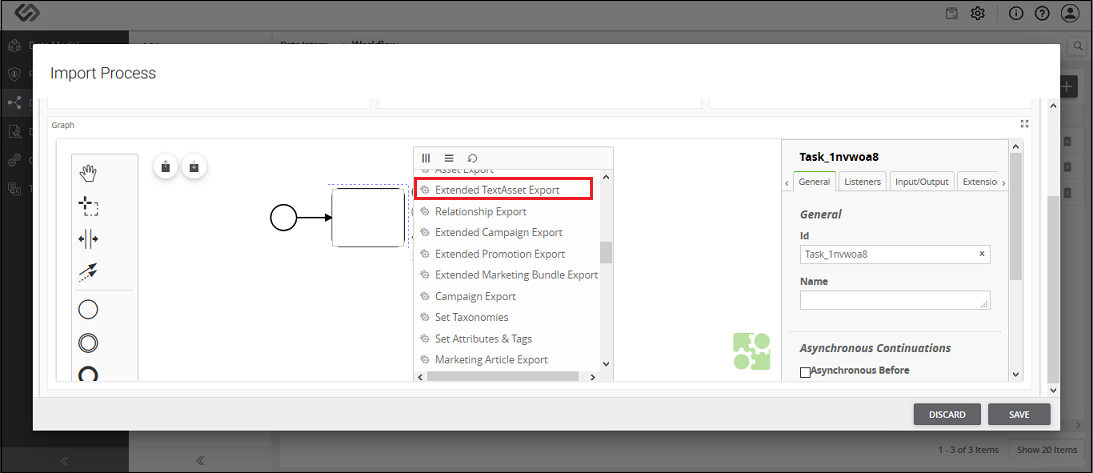

../../../../../../_images/pxp_exportcomponents_extendedtextassetexport2.PNG


../../../../../../_images/pxp_exportcomponents_extendedtextassetexport3.PNG


Extended TextAsset Export – Property Configuration

Sr. No. Screen Element Description
Sheet Name The offboarding file is the Excel file. Excel file may contain different sheets in it. Here, we need to mention the sheet name which contains the extended text assets details. This sheet will contain all non-nature text asset classes.
Primary Key Column All the extended text assets in an offboarding file have unique identification or IDs. Here, in Primary Key Column, we need to define the column name of a sheet which contains the unique IDs of the extended text assets. So, a system will fetch all the IDs of the extended text assets from the defined column of the sheet.
Type

Here we need to select one of the following options:

  • Column Class: Select this option, if all the extended text assets in an offboarding file use the same non-nature class.
  • Multiple Classes: Select this option, if extended text assets in an offboarding file use different types of non-nature classes of the system.
Column Name/Select Classes

The value of this field is based on the selection of Type field.

  • Column Name: When all the extended text assets in an offboarding file use the same non-nature class, we select the Column Class option from the Type field. In this case, we need to enter the column name of a sheet which contains the name of a non-nature class associated with all the extended text assets.
  • Select Classes: When extended text assets in an offboarding file use different non-nature classes, we select the Multiple Classes option from the Type field. In this case, we need to select the non-nature classes associated with different extended text assets from the list provided in Select Classes field.
Taxonomies Here we need to enter the column name of a sheet of an offboarding file which contains the taxonomy details.
