Import/Export Data via Endpoints

The Import/Export Data via Endpoints is a feature that provides a Data Integration dashboard for a workspace so that data can be imported or exported using the endpoints.

Key Term
  • Endpoint: an endpoint is a gateway that describes the system, processes and mapping to be used when onboarding or offboarding the products to and from the system.
Description:
  • The dashboard provides an at-a-glance view of the key indicators in the process or system.
  • A dashboard for the Import/Export Endpoints will showcase all the information regarding the process in a summary. It will show key indicators for the products that are transferred through the process.
Related topics:
Application:
  • Based on the dashboard, a supplier or user can view any violation that occurred during the import (or export) process. The supplier/user can then take appropriate corrective measures and decisions.

  • Example:

    The Import Endpoint dashboard helps a Fashion supplier to import the fashion data into the system. The dashboard will show a summarized report, as well as, a detailed report for the products imported. The dashboard will also give a glimpse of erroneous or incomplete data that can be corrected by the supplier.

How-to: Import/Export via Endpoints

To import and export via endpoints, follow these steps:

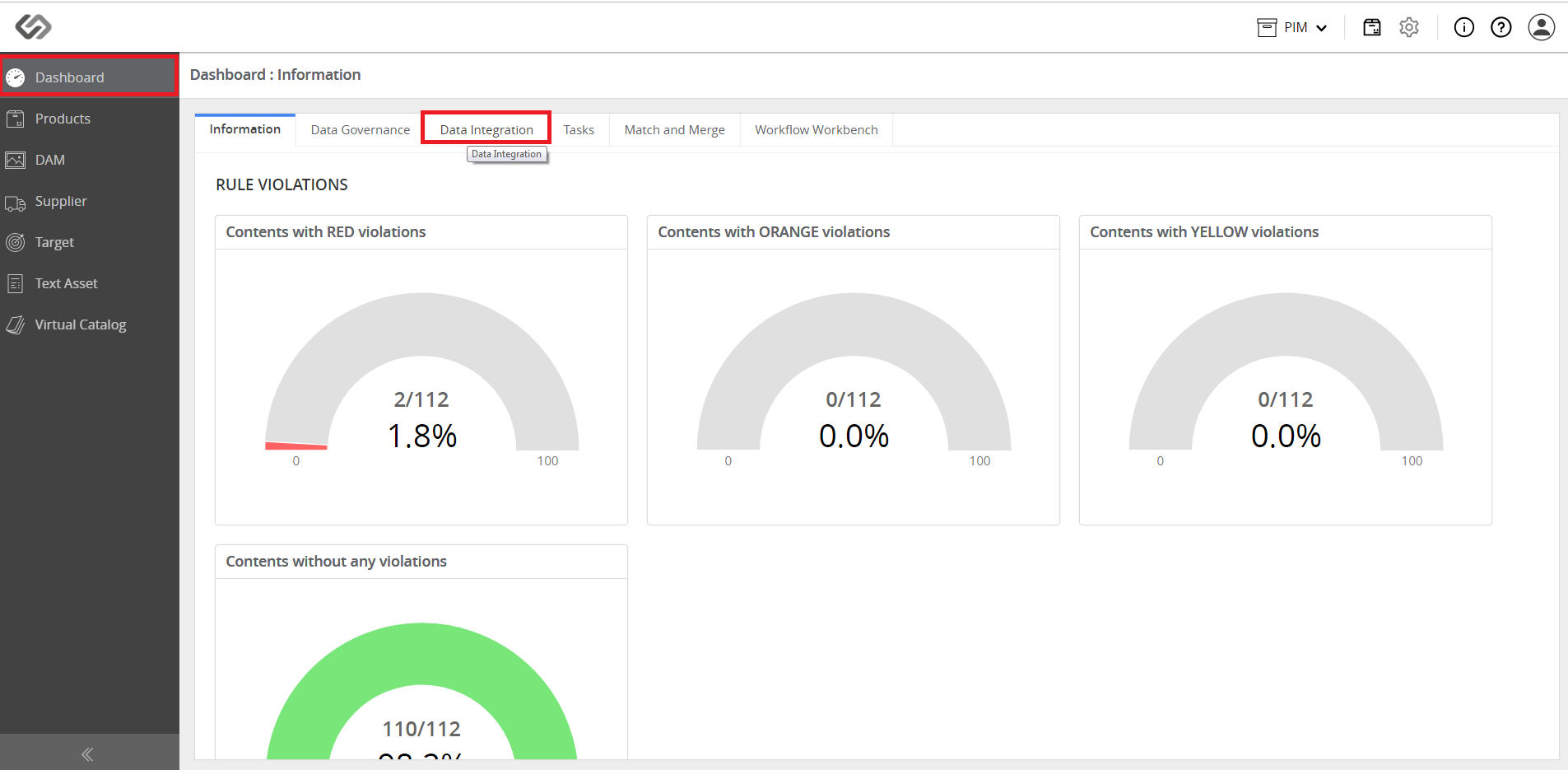

  • Log in and go to Dashboard, then then click on the Data Integration tab.
../../../../../../_images/pxp_importexportdataviaendpoints_login.PNG


  • Click on the desired endpoint to open and view the endpoint.
../../../../../../_images/pxp_importexportdataviaendpoints_endpoint.PNG

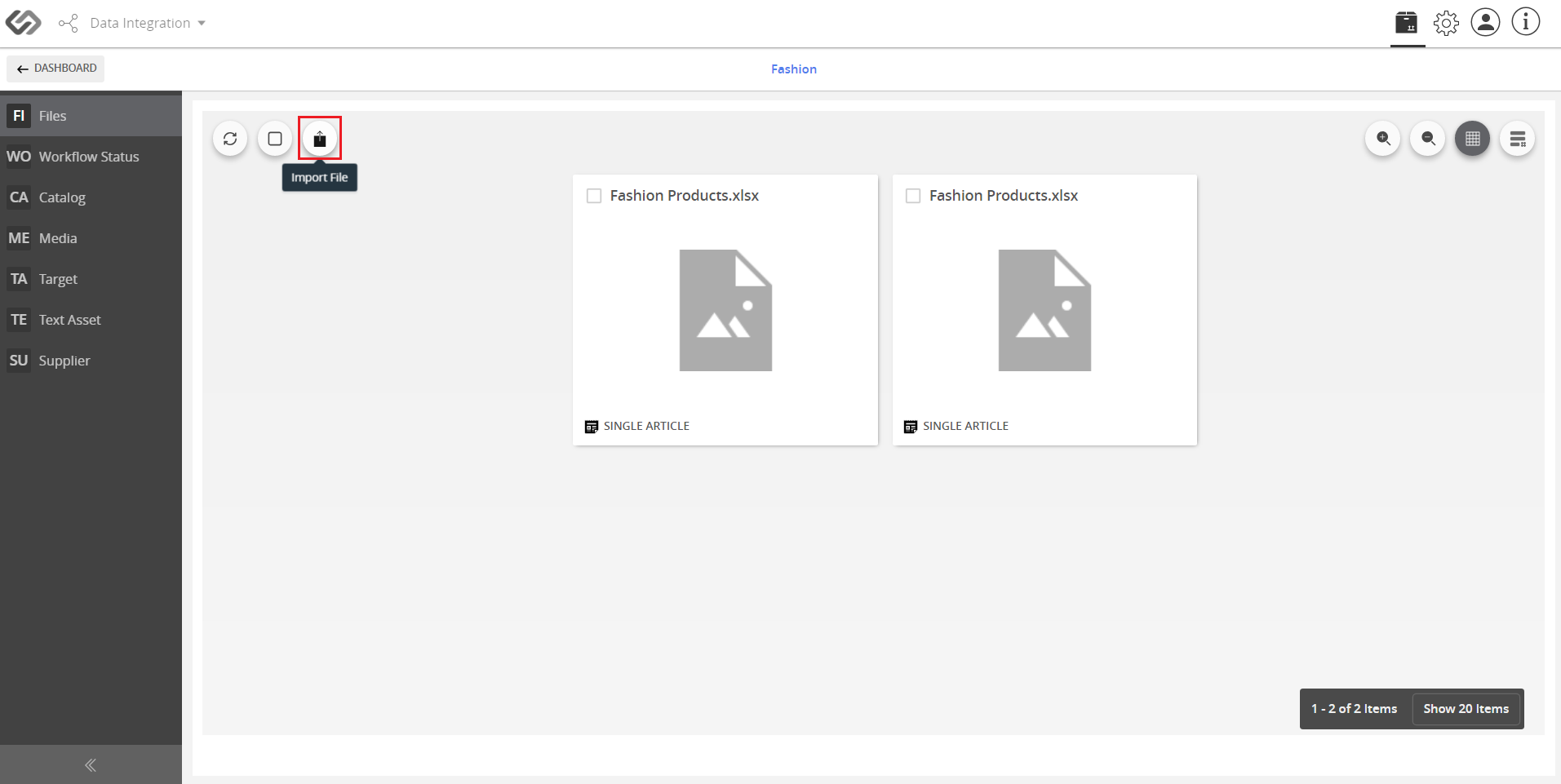

  • Click on the Import File button to import data.
../../../../../../_images/cs_importexportdataviaendpoints_importfile1.PNG

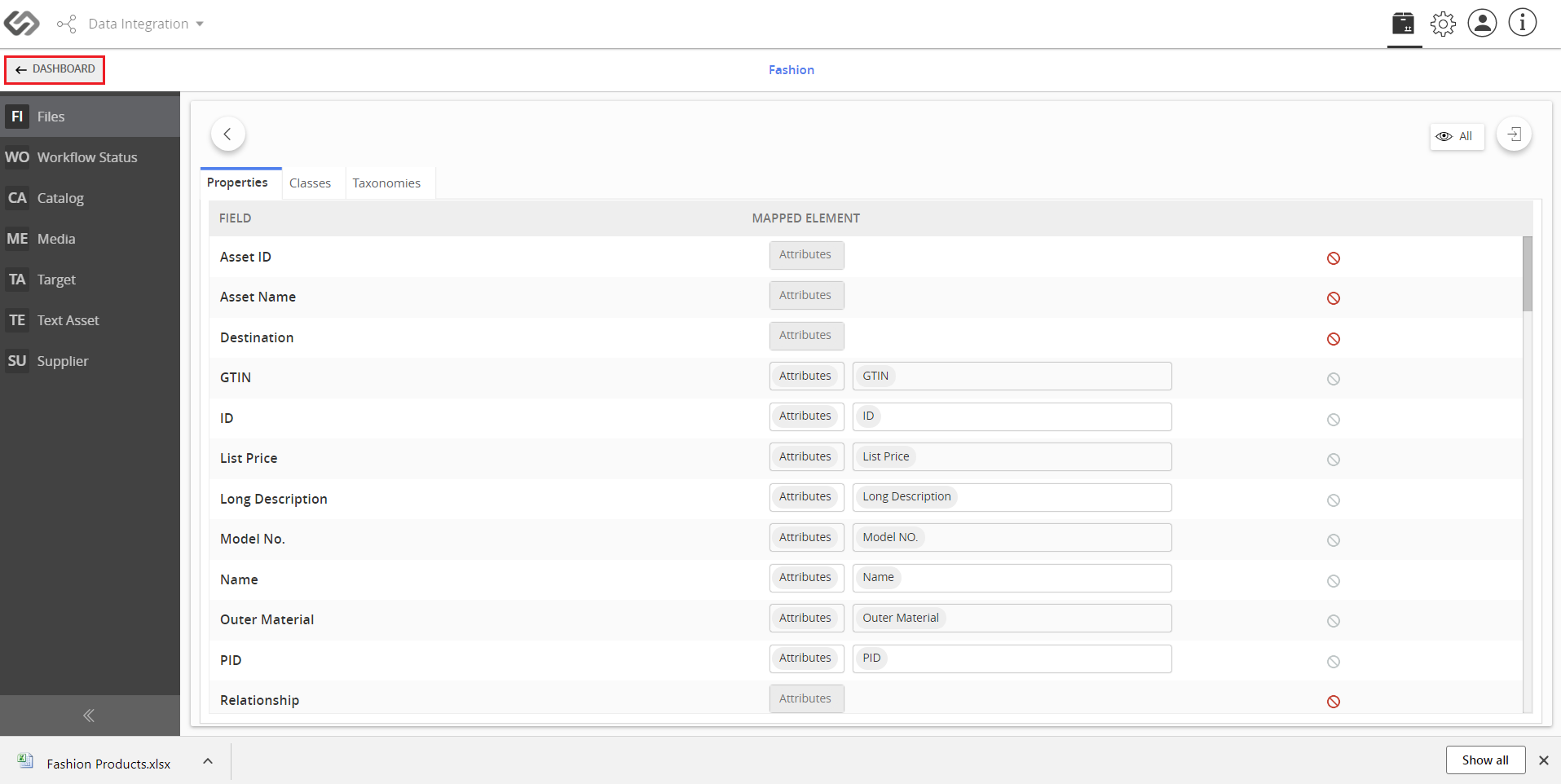

  • Go back to Dashboard.
../../../../../../_images/cs_importexportdataviaendpoints_back.PNG

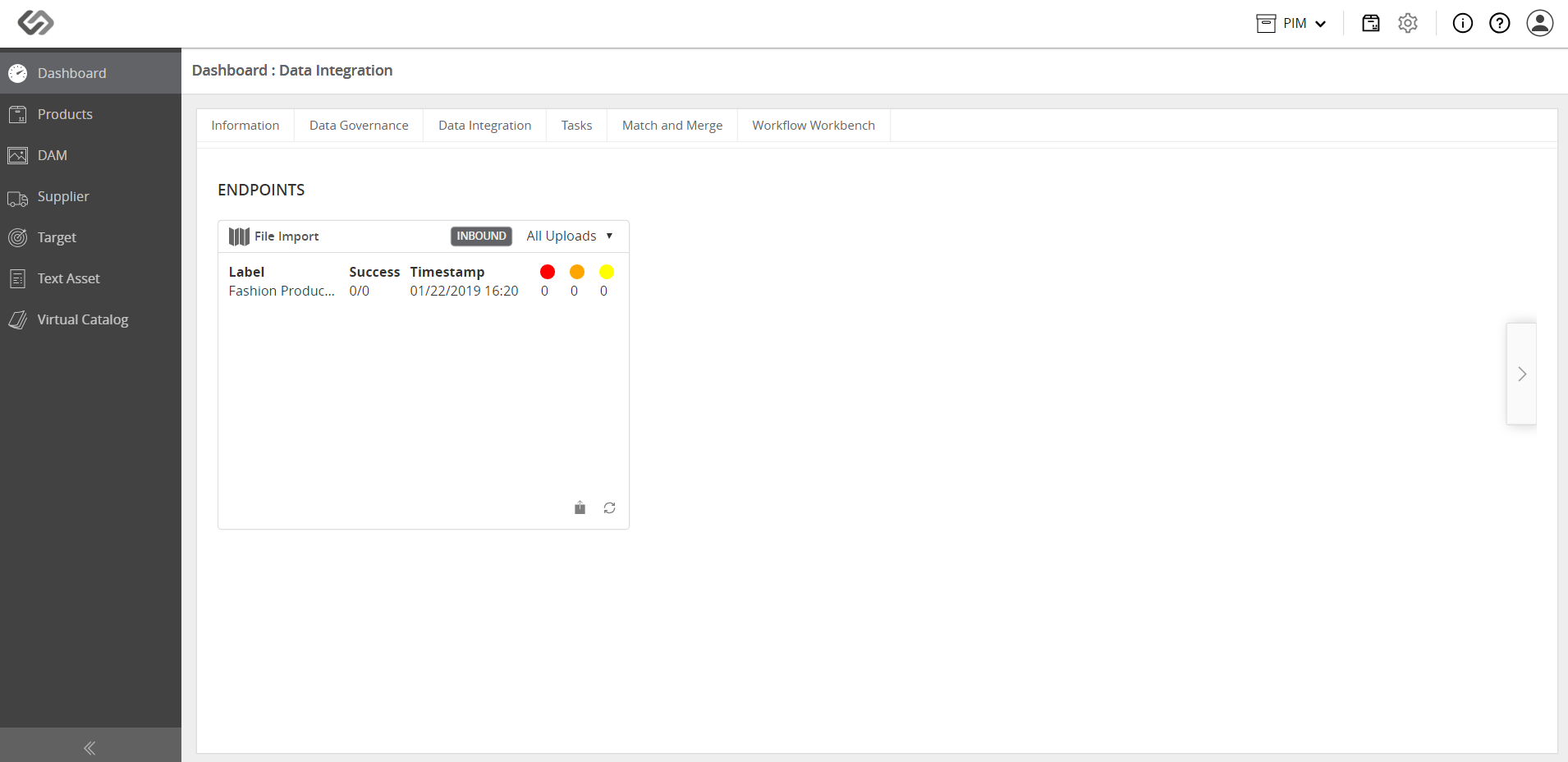

  • Click on the drop-down button and select the scenario to be shown in the report.
../../../../../../_images/pxp_importexportdataviaendpoints_dropdown.PNG

../../../../../../_images/pxp_importexportdataviaendpoints_dropdown2.PNG
