Extended Asset Export

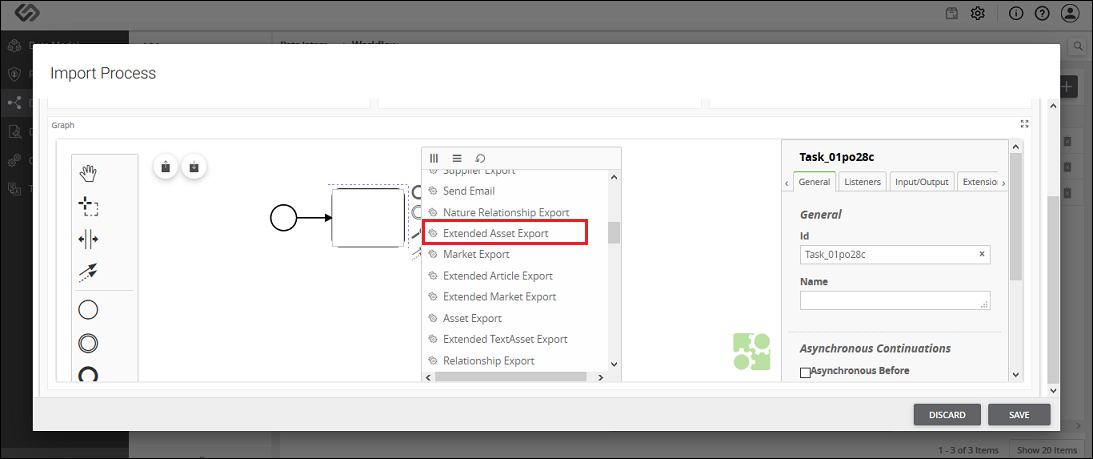

Extended Asset Export component is used to export the extended assets to the system.

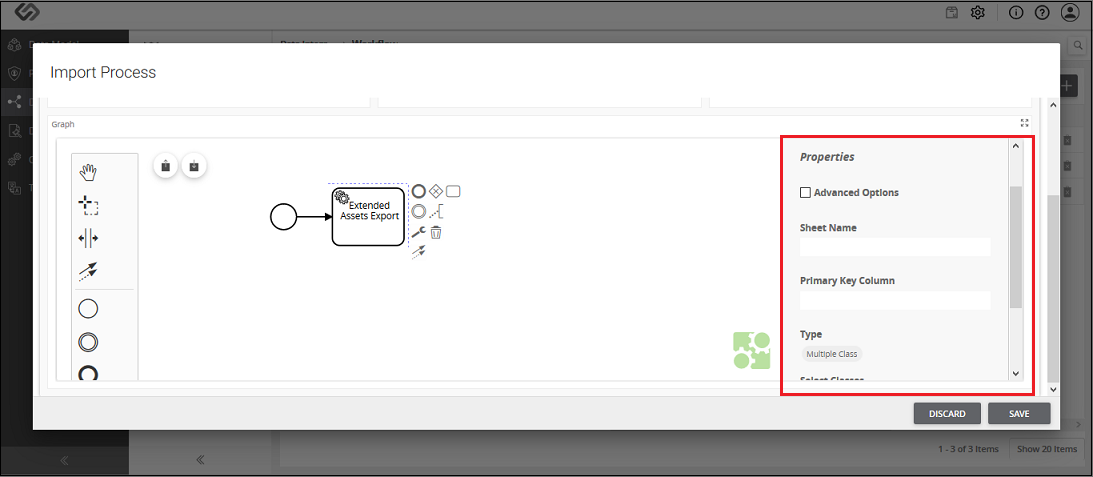

Extended Asset Export – Property Configuration

Sr. No.	Screen Element	Description
	Sheet Name	The offboarding file is the Excel file. Excel file may contain different sheets in it. Here, we need to mention the sheet name which contains the extended assets details. This sheet will contain all non-nature asset classes.
	Primary Key Column	All the defined extended assets in an offboarding file have unique identification or IDs. Here, in Primary Key Column, we need to define the column name of a sheet which contains the unique IDs of the extended assets. So, a system will fetch all the IDs of the extended assets from the defined column of the sheet.
	Type	Here we need to select one of the following options: Column Class: Select this option, if all the extended assets in an offboarding file use the same non-nature class. Multiple Classes: Select this option, if extended assets in an offboarding file use different types of non-nature classes of the system.
	Column Name/Select Classes	The value of this field is based on the selection of Type field. Column Name: When all the extended assets in an offboarding file use the same non-nature class, we select the Column Class option from the Type field. In this case, we need to enter the column name of a sheet which contains the name of a non-nature class associated with all the extended assets. Select Classes: When extended assets in an offboarding file use different non-nature classes, we select the Multiple Classes option from the Type field. In this case, we need to select the non-nature classes associated with different extended assets from the list provided in Select Classes field.
	Taxonomies	Here we need to enter the column name of the sheet of an offboarding file which contains the taxonomy details.
