JMS Producer Component

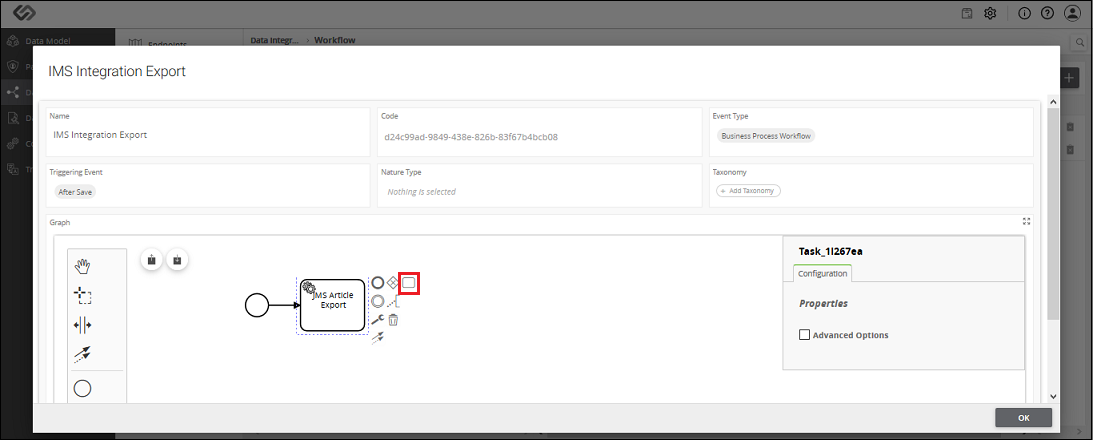

  • The JMS Producer component is used to establish the connection between PXP system and the producer’s messaging server. PXP system will send the data to the producer’s messaging server. To add the JMS Producer component, select the last notation in the workflow and click on the Task notation symbol.
../../../../../../_images/pxp_jmsproducercomponent_jmsproducercomponentestablish.PNG

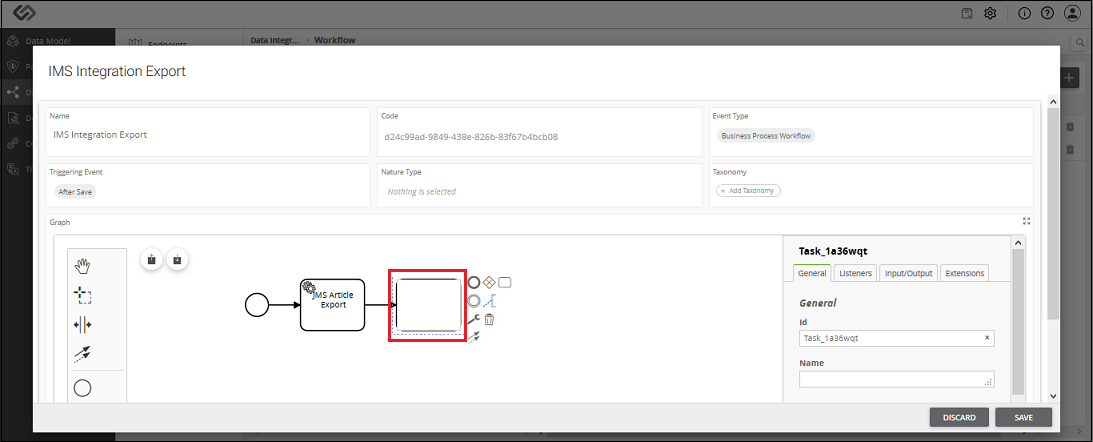

  • Once you click on the Task notation, it gets added in the flow.
../../../../../../_images/pxp_jmsproducercomponent_clicktasnotation.PNG

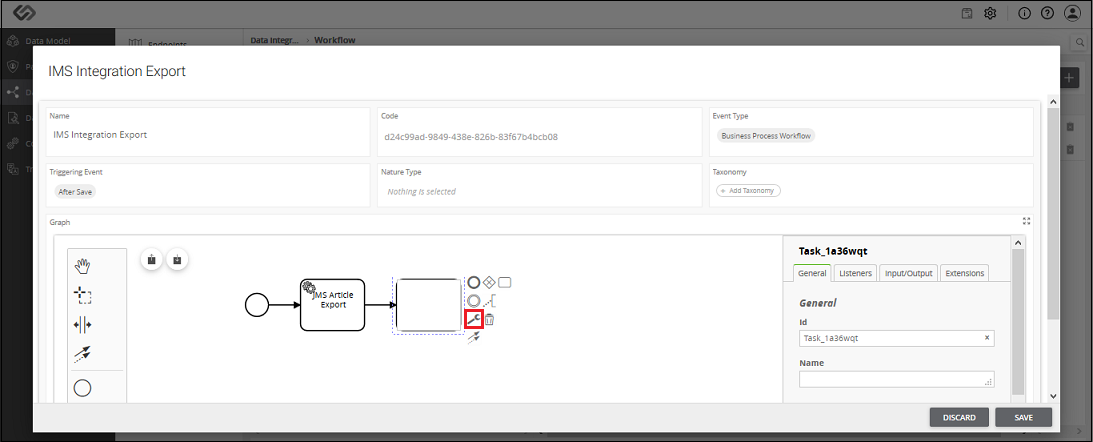

  • Define the type of component by clicking on the Change type icon.
../../../../../../_images/pxp_jmsproducercomponent_definetypecomponent.PNG

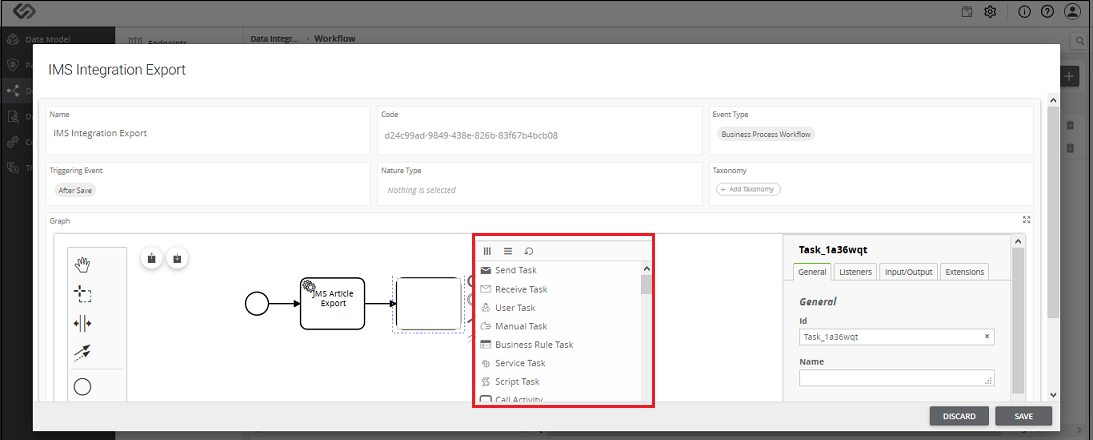

  • As soon as you click on the Change type icon, a pop window appears containing types of component.
../../../../../../_images/pxp_jmsproducercomponent_assoon.PNG

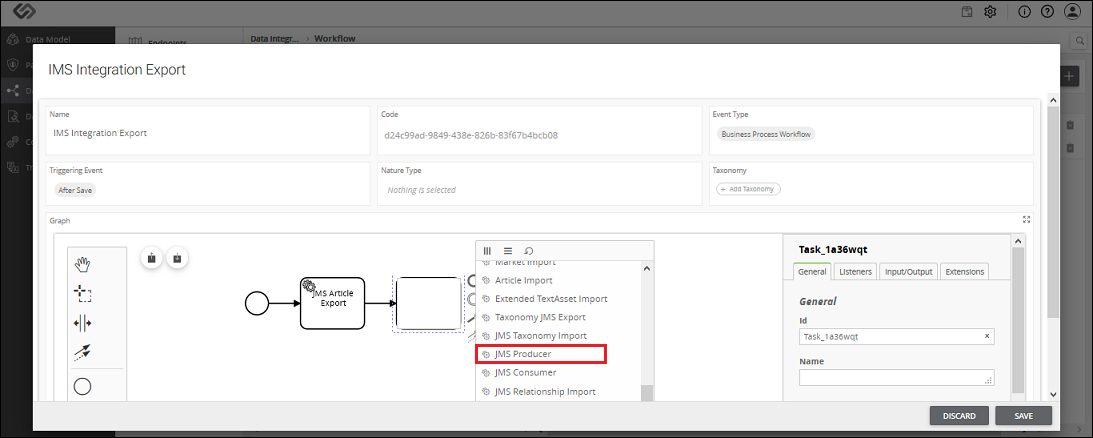

  • Select the component JMS Producer from the list.
../../../../../../_images/pxp_jmsproducercomponent_selectjmsproducer.PNG

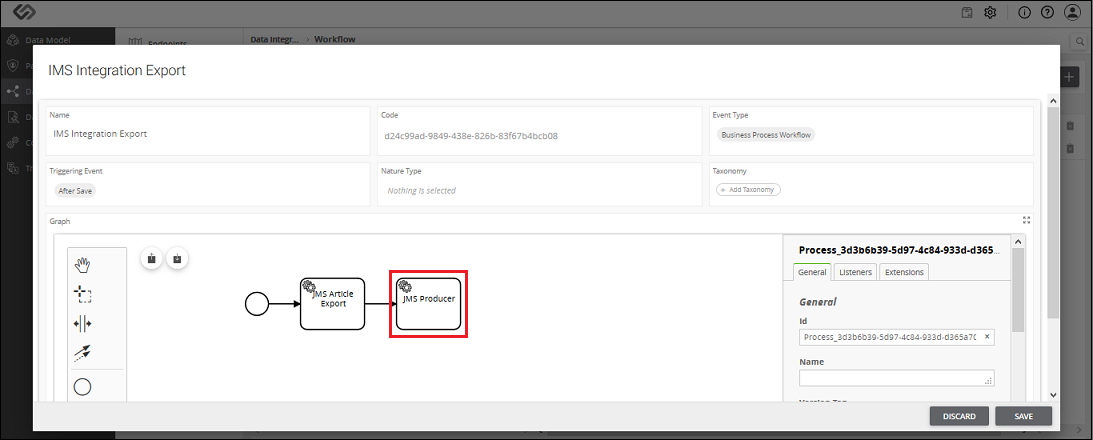

  • Enter a name to the component.
../../../../../../_images/pxp_jmsproducercomponent_entername.PNG

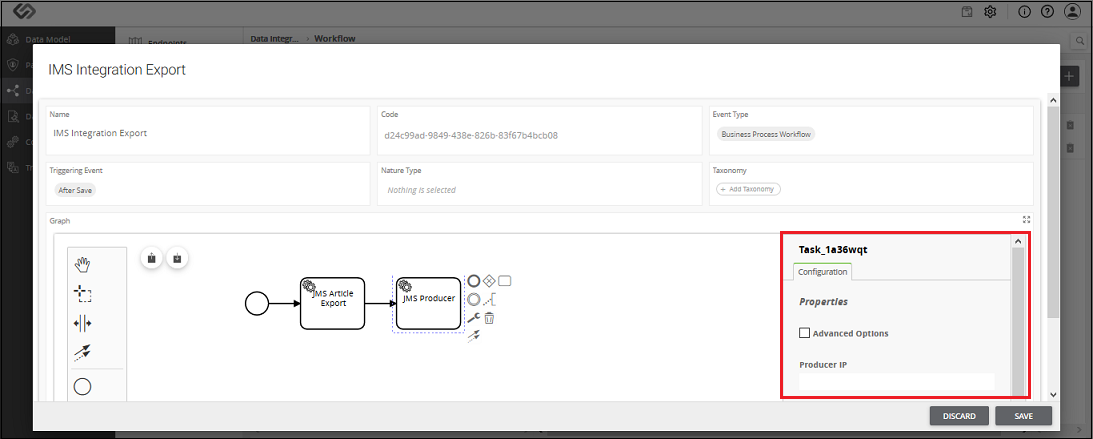

  • Select the JMS Producer component and enter the details of the JMS Producer component as described in the following table in the third vertical section.
../../../../../../_images/pxp_jmsproducercomponent_selectjmsproducerenterdetails.PNG


JMS Producer Component - Configuration

Sr. No. Screen Element Description
Consumer IP Provide the consumer IP address from where the PXP system will receive the message, which will contain the details in form of a JSON object. You need to prepend the protocol of the respective MQ server. For example, if you are using ActiveMQ, then use the tcp protocol in the beginning. Example of Consumer IP: tcp://0.0.0.0
Consumer Port Provide the consumer port number from where the PXP system will receive the message, which will contain the details in form of a JSON object.
Consumer Queue Name Enter the consumer queue name, from where the PXP system will receive the message, which will contain the details in form of a JSON object.
Consumer Acknowledgement Queue Once the PXP system sends the message to the producer system, then the PXP system will wait for the acknowledgement from the producer system. The producer system will send the acknowledgment of the process to the PXP system. Producer Acknowledgement Queue contains the queue name from where the PXP system will receive the acknowledgment of the completion of the process. There are following two types of acknowledgments: * Successful Completion: When the producer system receives the message successfully, it will send the success message to the PXP system. * Unsuccessful Completion: When the producer system does not receive a proper message, or it receives the erroneous message, then it will send the acknowledgment with an error message.
